Camera Vision System:
OCR/ Label inspection

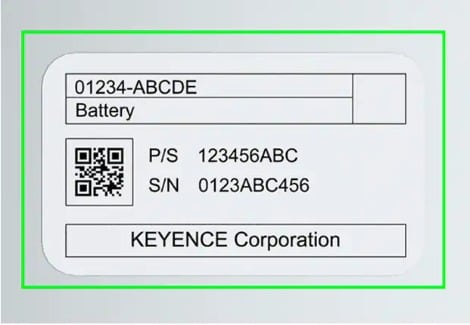

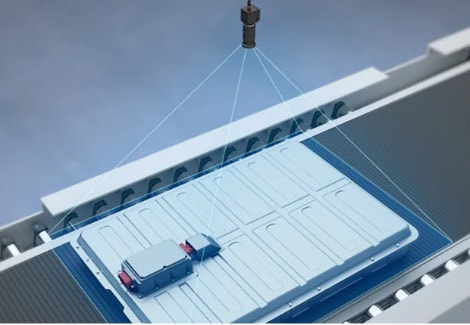

    Rechargeable automotive battery label OCR and position inspection

    • Capturing an image of the entire target all at once makes marking recognition possible for labels in any position.

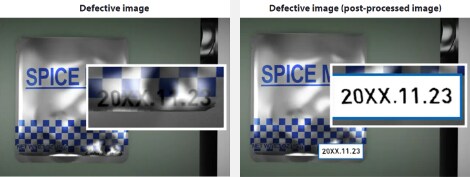

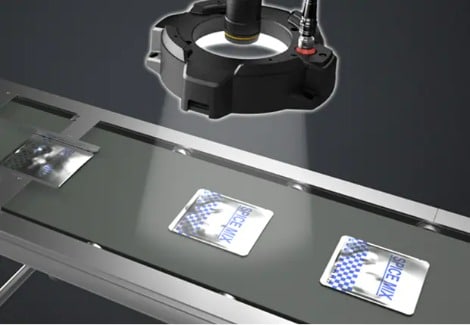

    Print inspection of aluminum film

    • In conventional inspections, the gloss and background color of the target can cause difficulties in text or marking identification. By using LumiTrax™ mode, it is possible to accurately extract only the uneven surfaces of text and markings, resulting in stable and reliable inspections.

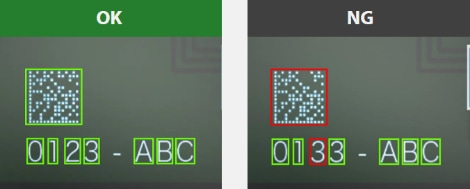

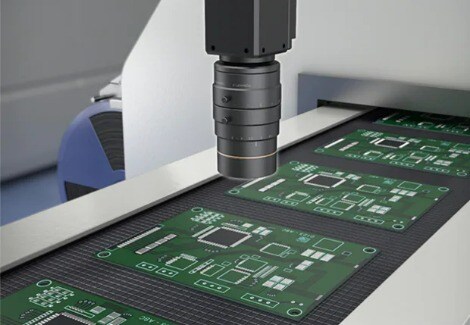

    Identification of characters on PCB

    • Using a high-pixel machine vision allows an entire PCB to be captured within the field of view. This enables simultaneous inspections to measure connector pitches and other items, as well as to recognize/judge character information and 2D codes.

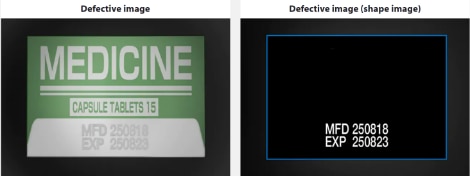

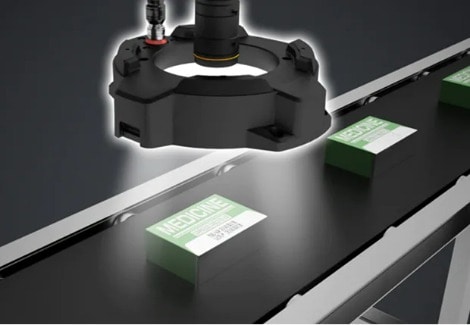

    Print inspection of medical cartons

    • In conventional inspections, similar colors between the background and the markings can cause difficulties. By using LumiTrax™ mode, it is possible to accurately extract only the uneven surfaces of text and markings, resulting in stable and reliable inspections.

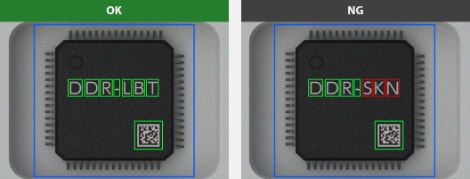

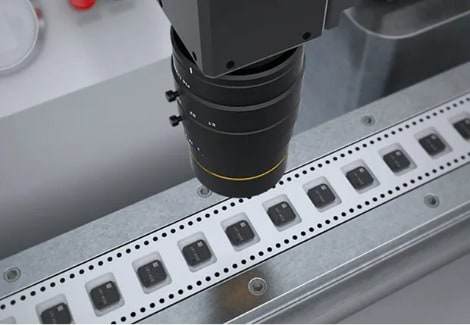

    Product type differentiation/2D identification of IC packages

    • Read the characters/2D codes laser-marked on the surface of IC chips. A single machine vision can recognize both characters, such as part numbers, and 2D codes simultaneously.

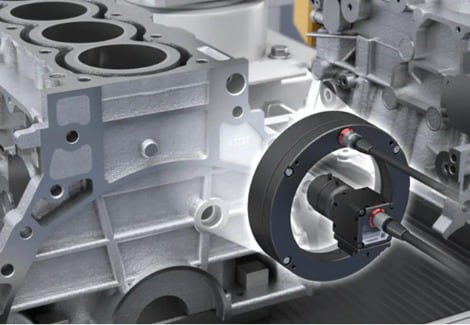

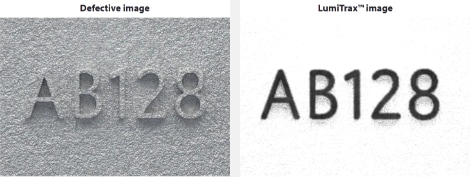

    Character recognition for inscriptions on casted parts

    • It was difficult to introduce machine vision for the recognition of characters marked on cast parts due to difficult lighting conditions. However, the combination of the LumiTrax™ function and an area camera allows low-cost, stable detection.
