Camera Vision System:
Dimension Measurement

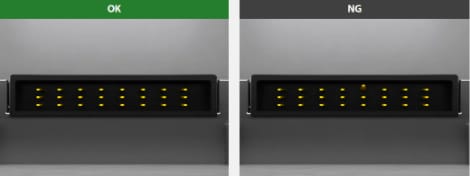

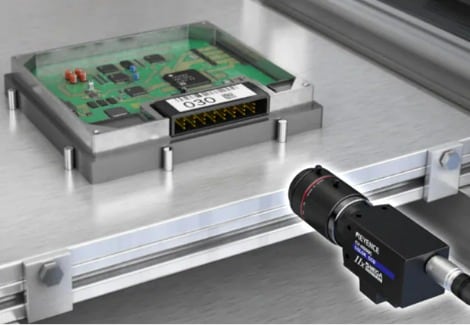

Connector terminal bend inspection

The inspection of packet sealing width was unstable due to the influence of patterns, uneven surfaces and glare. The LumiTrax™ function enables inspection based on shape only, by using the information of the uneven surface of the sealed section.
- XG-X series
- Price

U-pin dimension inspection

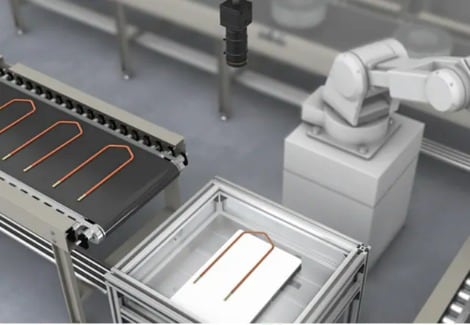

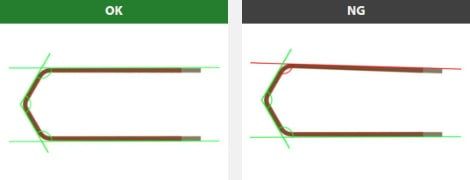

Various dimension inspections are necessary after forming flat wires, including measuring the width of the coil ends. Using a high-resolution camera ensures tighter tolerances, which prevents improper stator insertions downstream.

Packaging seal inspection

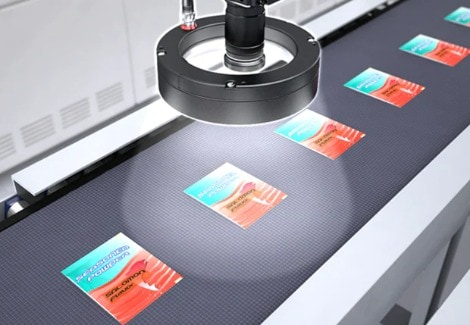

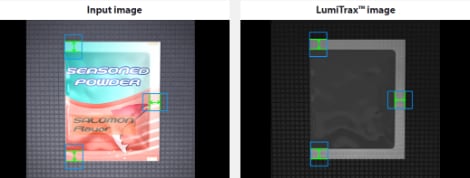

The inspection of packet sealing width was unstable due to the influence of patterns, uneven surfaces and glare. The LumiTrax™ function enables inspection based on shape only, by using the information of the uneven surface of the sealed section.
- CV-X series
- Price

Spark plug dimension inspection

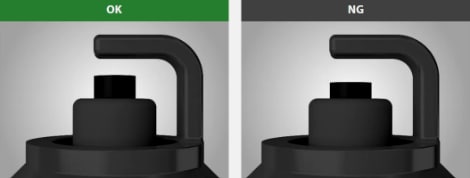

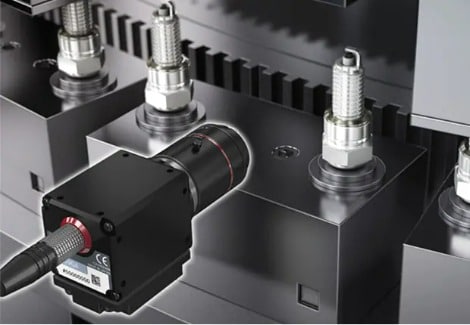

Dimension inspection of complex-shaped targets required the use of multiple measurement tools and calculations. KEYENCE's image processing system offers dimensions/geometry tools that allow high-accuracy inspection with intuitive operation.

RECOMMENDED ITEMS

	CV-X Series Intuitive Vision System Catalogue [File type]PDF:13.36MB
	XG-X Series Customizable Vision System Catalogue [File type]PDF:16.86MB
